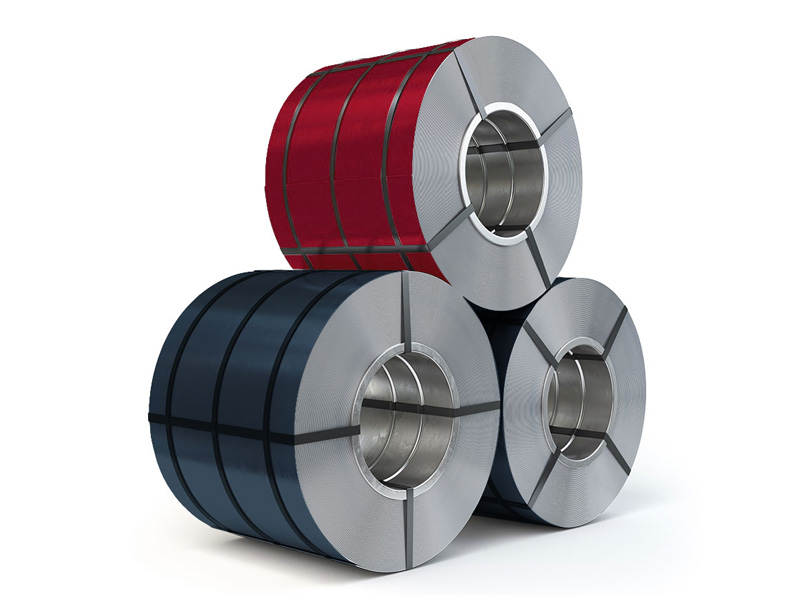

Painted Sheets
- Coil thicknesses range from 0.25 mm to 1.60 mm.
- Coil width: min. 20 mm (slit), max. 1250 mm
- Coil inner diameter is 508 mm/610 mm.
- Coil weights: min. 2 tons, max. 12 tons
- Additional processes (cutting, slitting, and forming) can be performed upon customer request.
- Description
| Sheet Thickness (mm) | Weight per 1 meter (kg) | |||||||
| 600 (mm) | 700 (mm) | 800 (mm) | 900 (mm) | |||||
| 0,20 | 0,94 | 1,10 | 1,26 | 1,41 | ||||
| 0,25 | 1,18 | 1,37 | 1,57 | 1,77 | ||||
| 0,30 | 1,41 | 1,65 | 1,88 | 2,12 | ||||
| 0,35 | 1,65 | 1,92 | 2,20 | 2,47 | ||||
| 0,40 | 1,88 | 2,20 | 2,51 | 2,83 | ||||
| 0,45 | 2,12 | 2,47 | 2,83 | 3,18 | ||||
| 0,50 | 2,36 | 2,75 | 3,14 | 3,53 | ||||
| 0,60 | 2,83 | 3,30 | 3,77 | 4,24 | ||||
| 0,70 | 3,30 | 3,85 | 4,40 | 4,95 | ||||
| 0,80 | 3,77 | 4,40 | 5,02 | 5,65 | ||||
| 0,90 | 4,24 | 4,95 | 5,65 | 6,36 | ||||
| 1,00 | 4,71 | 5,50 | 6,28 | 7,07 | ||||
| 1,20 | 5,65 | 6,59 | 7,54 | 8,48 | ||||
| 1,50 | 7,07 | 8,24 | 9,42 | 10,60 | ||||
| 2,00 | 9,42 | 10,99 | 12,56 | 14,13 | ||||
| 2,50 | 11,78 | 13,74 | 15,70 | 17,66 | ||||
| 3,00 | 14,13 | 16,49 | 18,84 | 21,20 | ||||
| 4,00 | 18,84 | 21,98 | 25,12 | 28,26 | ||||
| 5,00 | 23,55 | 27,48 | 31,40 | 35,33 | ||||
